Nova

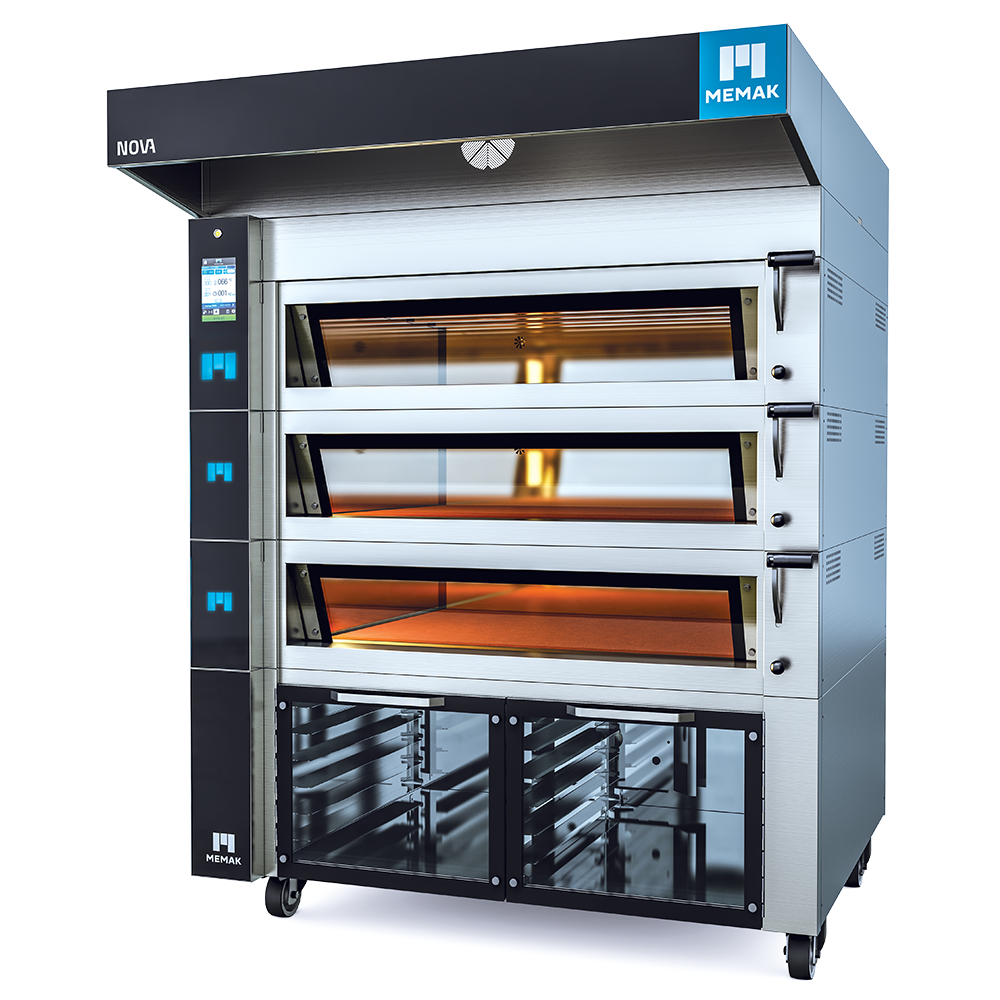

ELECTRICAL DECK OVEN

Standard Features

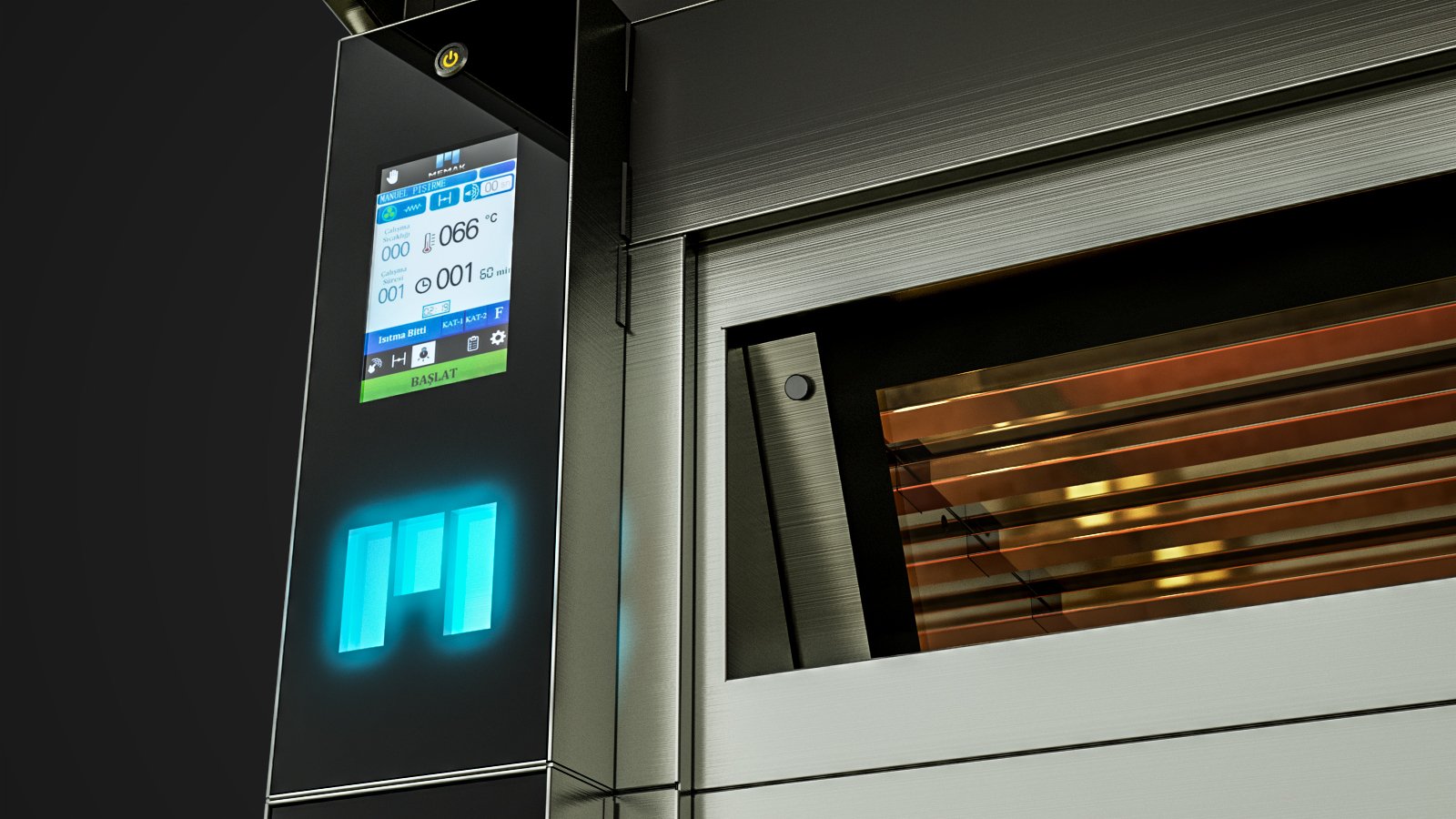

• Plc Touch Screen
• Compatible with Industry 4.0
• Stylish and ergonomic design
• Visual and audible warning
• High energy saving
• Adjustable height
• High energy saving thanks to condensing ceramic resistance technology.
• Internal Aluminised Alusi sheet
• Adjustable moisture balance with manual air damper system
• Static heating principle
• For each deck of the oven, the temperatures (bottom/top sides) can be adjusted as needed therefore you can bake a different kind of pastry in each deck as you want
• Specially alloyed smooth surface baking tile
• External cover AISI 304 grade stainless steel design
• Manually control air damper
• Independent automatic temperature and humidity control in profing chamber
• Single glass door
• Temperature range 50-300 °C

Accesories

• Stant
• PLC touch screen

Technical Specifications

Given technical details for single deck.
NOVA 128 | NOVA 125 | NOVA 68
Number of
Tray (80x60 cm) | Pcs | 2 | 2 | 1
Number of
Tray (60x40 cm) | Pcs | 4 | 6 | 2
Baking Area | m2 | 1 | 1.5 | 0.5
Possible
Amount of Deck | Pcs | 1-4 | 1-4
Interior
Dimensions | cm | W: 120 / L: 80 | W: 120 / L: 125 | W: 60 / L: 80
Exterior
Dimensions | cm | W: 160 / L: 140 /
H:33 | W: 160 / L: 165 /
H:33 | W: 99 / L: 140 / H:33
Intake
Opening | cm | 121 x 21 | 121 x 21 | 61 x 21
Steam
Extraction Pipe | Ø cm | 11,5 | 11,5 | 11,5
Water Supply | inch | 1/2” | 1/2” | 1/2”
Heating Type | Electrical | Electrical | Electrical
Power | kw | 7,4
(+2,6 Steam Generator Power) | 9,7
(+2,6 Steam Generator Power) | 4,5
(+1,5 Steam Generator Power)
Weight | kg | 225 | 250 | 145
Control
System | Digital Programmable | Digital Programmable | Digital Programmable
Power Supply | 380 V / 50-60 hz / 3
Phase | 380 V / 50-60 hz / 3
Phase | 380 V / 50-60 hz / 3
Phase
Given technical
details for profing chamber.
Number of Tray (80x60 cm) | Pcs | 12 | 12 | 6
Number of
Tray (60x40 cm) | Pcs | 24 | 24 | 12
Exterior
Dimensions | cm | W: 160 / L: 140 /
H:71 | W: 160 / L: 165 /
H:71 | W: 99 / L: 140 / H:71
Weight | kg | 175 | 175 | 125
Power | kw | 4 | 4 | 3,2
Given technical
details for steam extraction.
Exterior Dimension | W: 160 / L: 45 / H:25 | W: 160 / L: 45 / H:25 | W: 99 / L: 45 / H:25
Weight | 15 | 15 | 10
Power | 0.3 | 0.3 | 0.3
Total Dimensions | W : 160
L : 140
L1 : 175
H : 211+10 | W : 160
L : 165
L1 : 175
H : 211+10 | W : 99
L : 140
L1 : 175
H : 211+10
