Rota

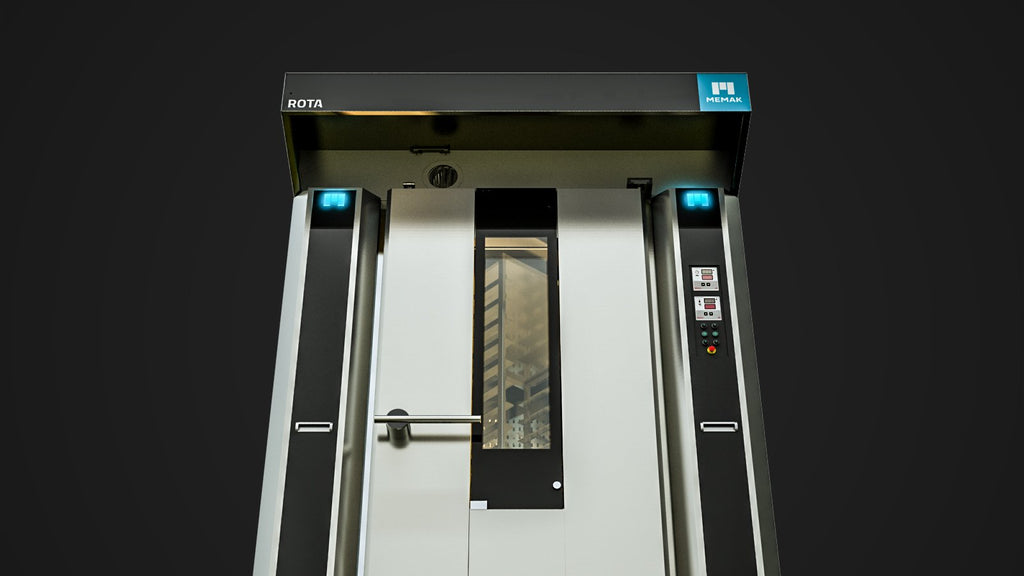

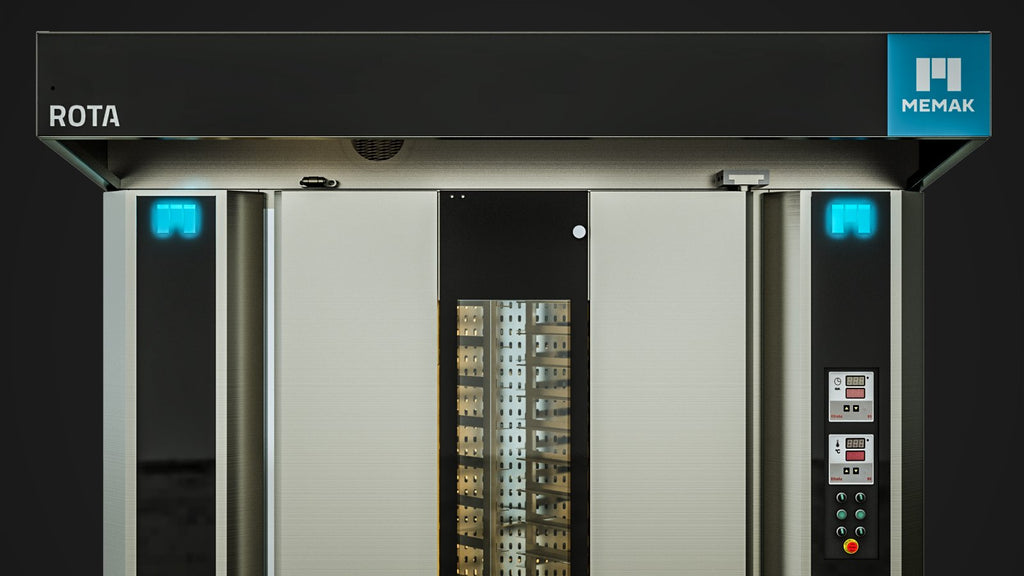

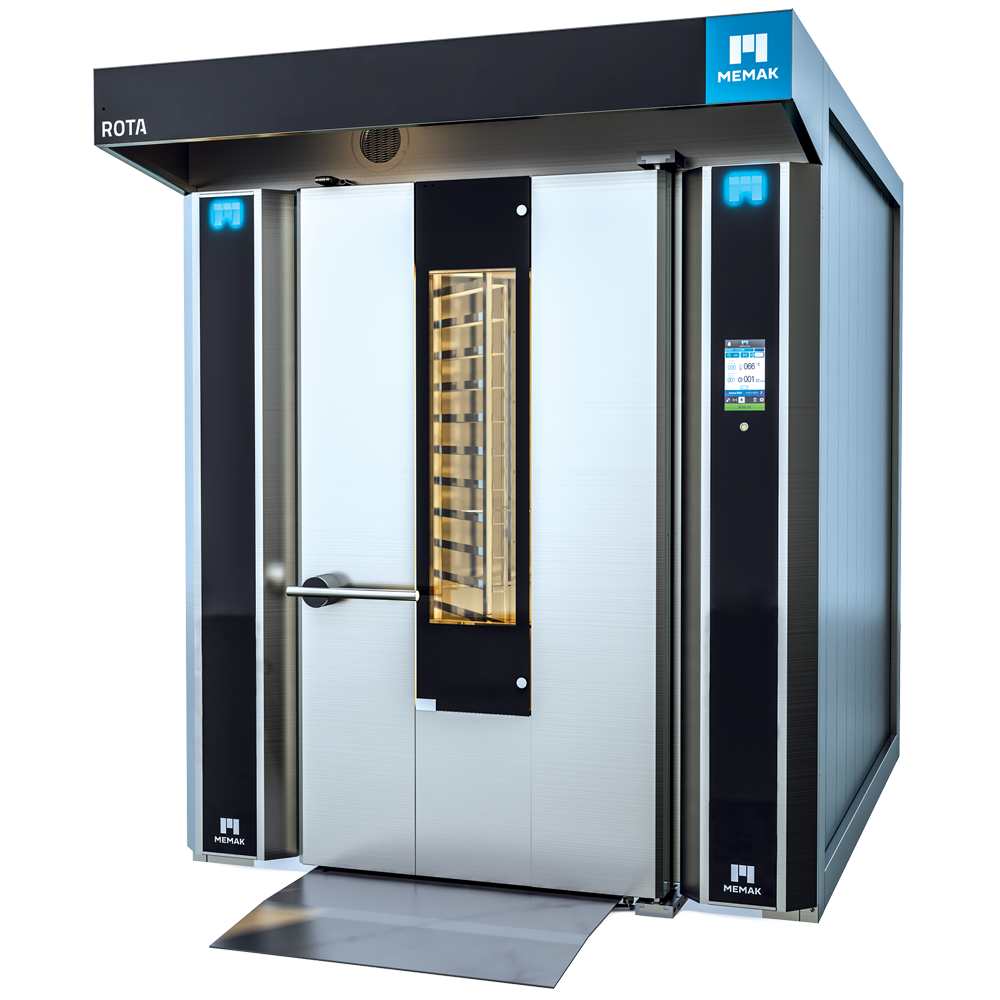

ROTARY OVEN

Standard Features

• Compatible with Industry 4.0
• Stylish and ergonomic design
• Visual and audible warning
• High energy saving
• Rotating platform - swing system
• Burner chamber could be at right/left side according to bakery requwst...
• Internal & External AISI 304 grade stainless steel design
• Riello brand burner
• High efficiency powerfull steam generators
• Temperature range 50-300°C
• Gas connection pressure between 50-300 mbar (Only in gas version)
• Automatic steam control

Accesories

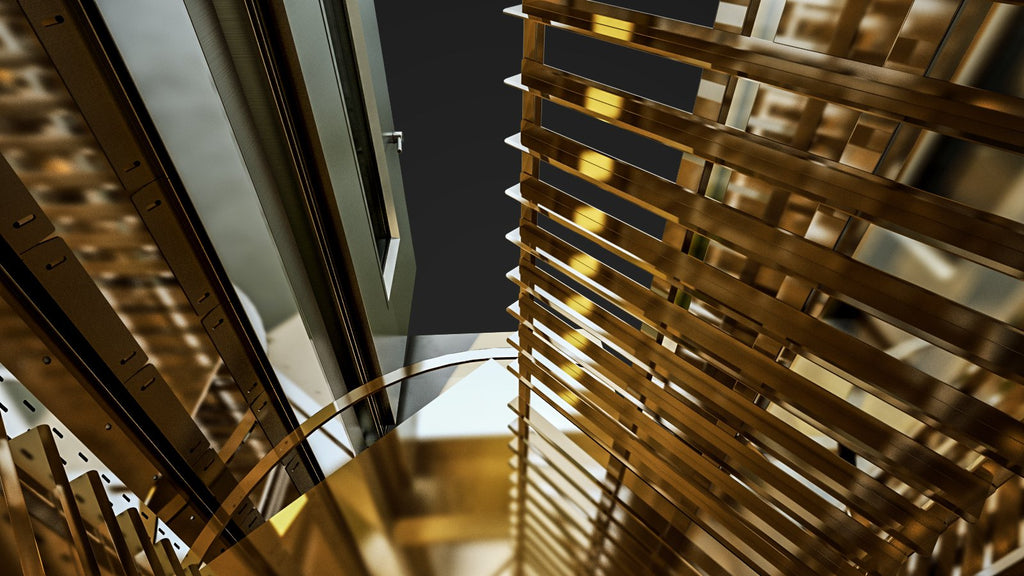

• Rack trolley and tray
• Air damper

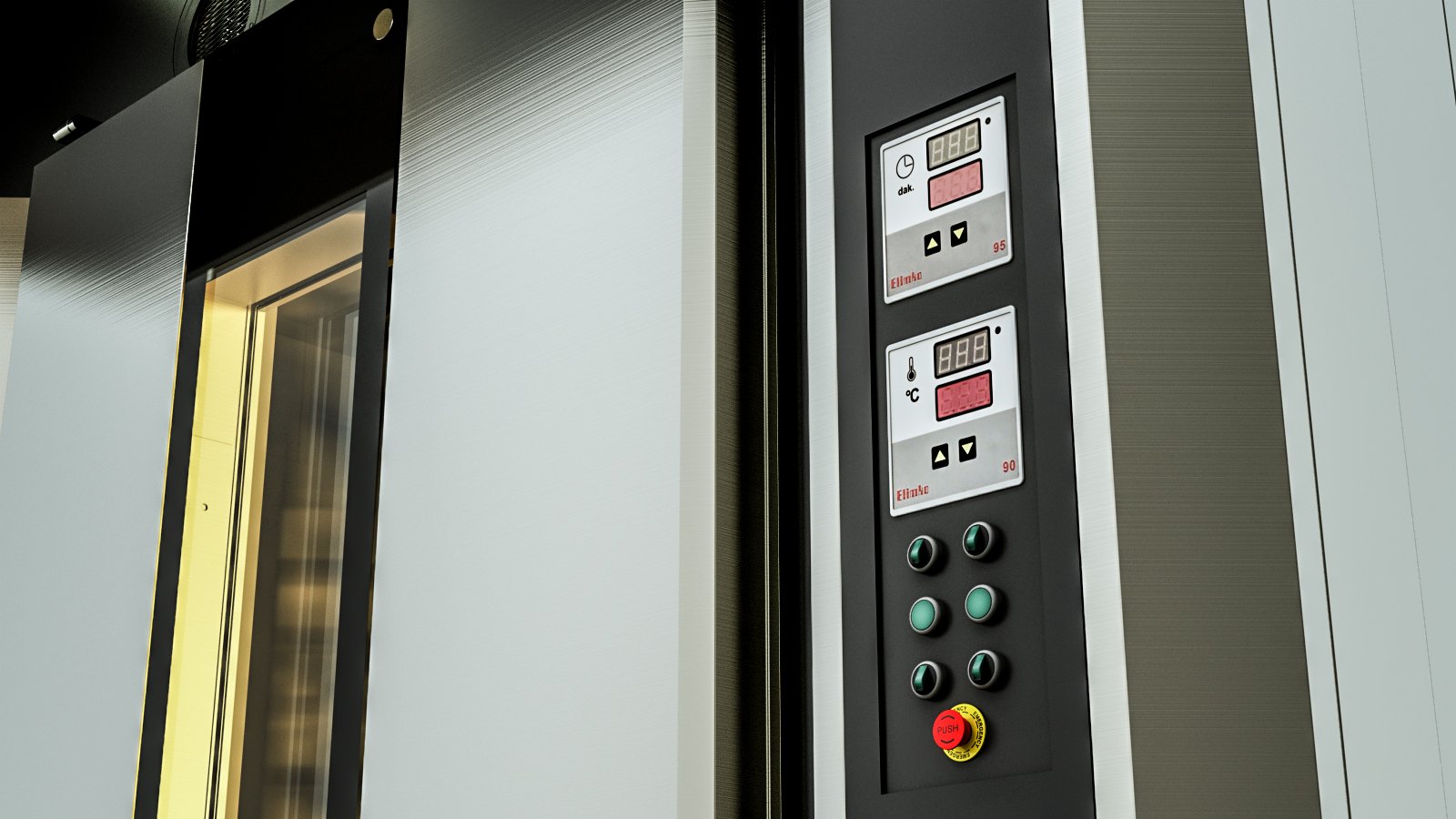

• PLC touch screen control panel

Technical Specifications

ROTA810 | ROTA609 | ROTA608 | ROTA507
Baking Capaeity | Pcs | 3360 | 2016 | 1584 | 1056
Baking Tray Size | cm | 80x100 / 75x104 | 60x90
/ 60x80 | 60x90
/ 60x80 | 50x70
Number of Trays | Pcs | 14
-16 -18 | 14
-16 -18 | 11
-13 -15 | 9
-11 -15
Tray Clearanaces | cm | 11,4
-10 -8,9 | 11,4
-10 -8,9 | 12,5
-10,5 -9 | 12,9
-10,5 -7,7
Baking Area | m2 | 11,2
-12,8 -14,4 | 7,56
-8,64 -9,72 | 5,94
-7,02 -8,01 | 3,15
-3,85 -5,25
Door Entranece | cm | 100 | 80 | 80 | 70
Chimney Outlet | Øcm | 22 | 22 | 22 | 18
Steam Extraction Pipe | Øcm | 13 | 13 | 13 | 13
Water Supply | lnch | 1/2" | 1/2" | 1/2" | 1/2"
Burner Capacity | kw | 81
/ 220 | 42
/ 116 | 42
/ 116 | 46
/ 93
Energy Resource | Gas-Oil, Solid Fuel
Electric Connection | 380 V / 50-60 hz / 3 Phase
Power Supply | kw | 3,5 | 3,5 | 3,5 | 3,5
Thermal Power | kcal/kw | 81.700
/ 95 kw | 60.200
/ 70 kw | 60.200
/ 70 kw | 45580
/ 53 kw
Gas Connection pressure | Mbar | 21-300 | 21-300 | 21-300 | 21-300
Weight | kg | 2650 | 2250 | 1920 | 1400
Exterior Dimensions | cm | W:
191,5
H: 232+30
L: 260 | W:
171,5
H: 232+30
L: 227 | W
: 171,5
H: 207+30
L: 227 | W:
140
H: 182+30
L: 180

Documents

• User Guide
• Product Brochure
