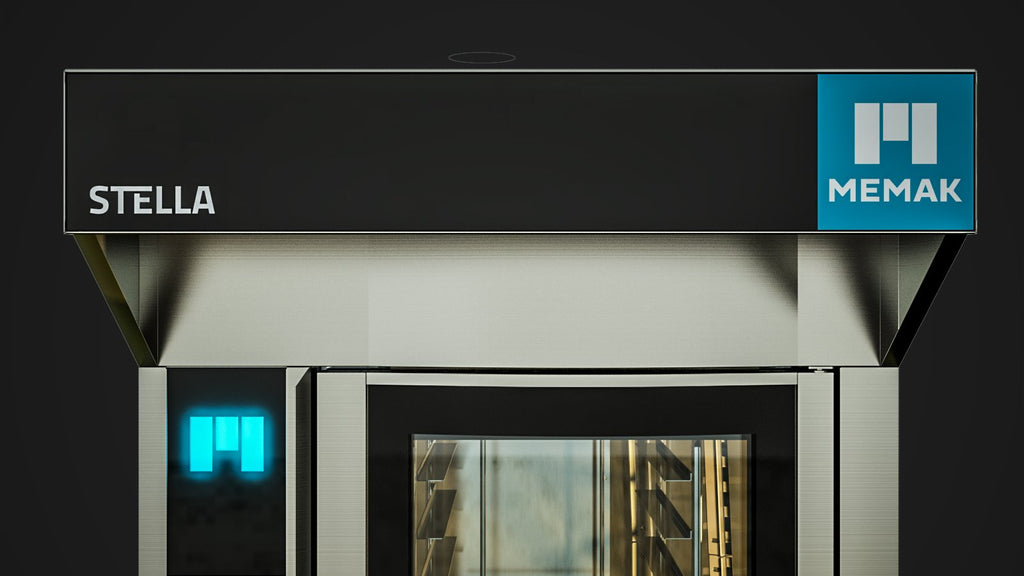

Stella

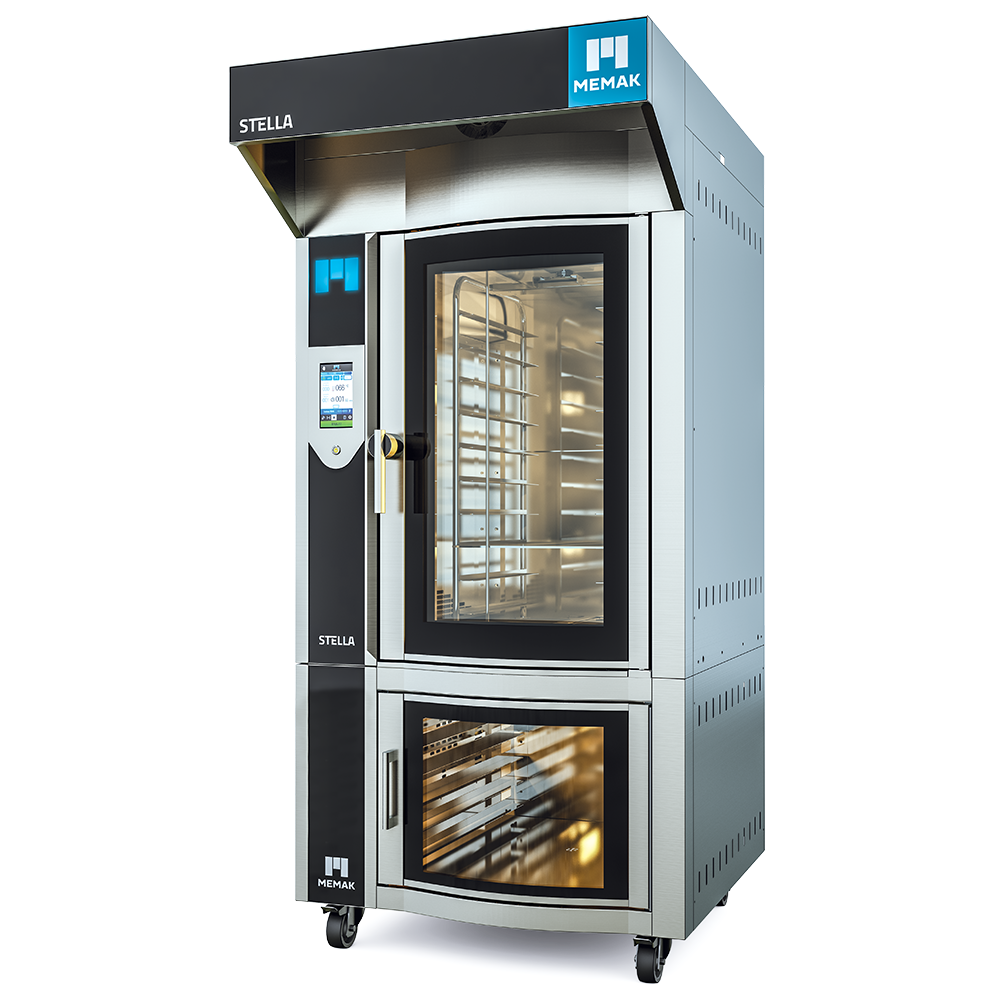

ROTARY CONVECTION OVEN

Standard Features

• Compatible with Industry 4.0
• Stylish and ergonomic design
• Visual and audible warning
• High energy saving
• Easy Installation

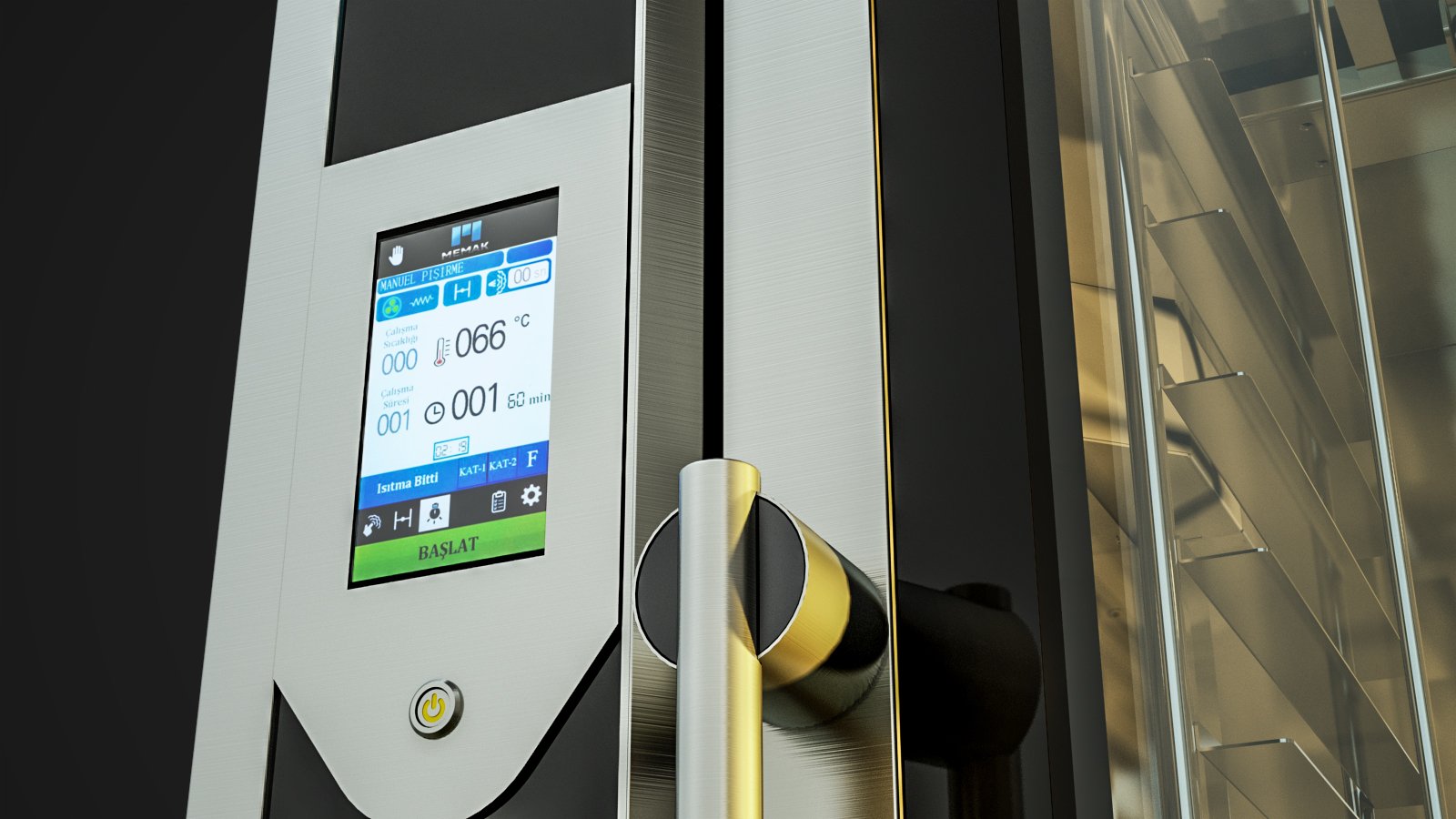

• PLC Touch screen control panel
• Stainless steel interior-exterior design

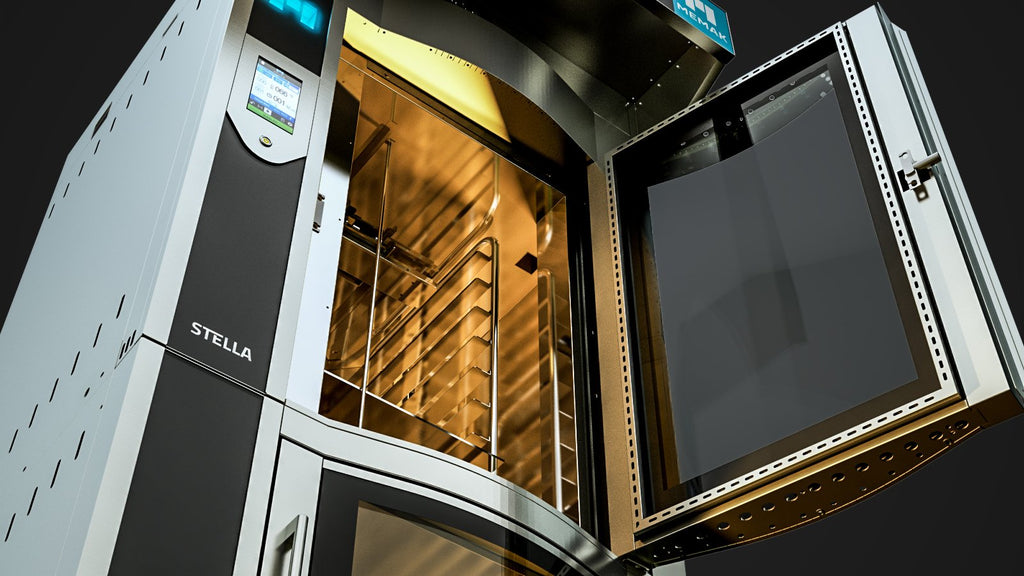

• Large front window with double heat-resistent glass
• High capacity steam system with cast-iron ball steam generator
• Automatic steam control and air damper
• Bidirectional trolley rotation
• Independent automatic temperature and humidity control in profing chamber
• Temperature range 50-300 °C
• Eco mode

Accesories

• Stant
• Manual screen

Technical Specifications

STELLA 10E | STELLA 10G
Number of Tray
(80x40 cm) | cm | 40
x 60 | 40
x 60
Number of Tray
(60x40 cm) | Adet | 10 | 10
Tray
Clearances | cm | 8,5 | 8,5
Boking Area
Of Deck | m2
Exterior
Dimensions | cm | W:
100 / L: 108
H:140 + 10 | W:
100 / L: 145
H:140 + 10
Intake
Opening | cm | 52 | 52
Steam
Extraction Pipe | Ø cm | 9 | 9
Water Supply | İnç | 1/2 | 1/2
Heating Type | Electrical | Gas
Weight | kg | 350 | 390
Power Supply | 380
V / 50-60 hz / 3 Phase | 380
V / 50-60 hz / 3 Phase
Control
System | Digital
Programmable | Digital
Programmable
Power | 23,5
kw | 3,5
kw
Thermal Power | kcal | 16000
/ 18 kw
Number of Tray
(60x40 cm) | Adet | 12 | 12
Exterior
Dimensions | cm | W:
100 / L: 108 / H:72 | W:
100 / L: 108 / H:72
Power | kw | 2.5 | 2.5
Weight | kg | 100 | 100
Total
Dimensions | W
: 100
L : 108
L1 : 130
H : 212+10 | W
: 100+22
L : 145
L1 : 195
H : 212+10
