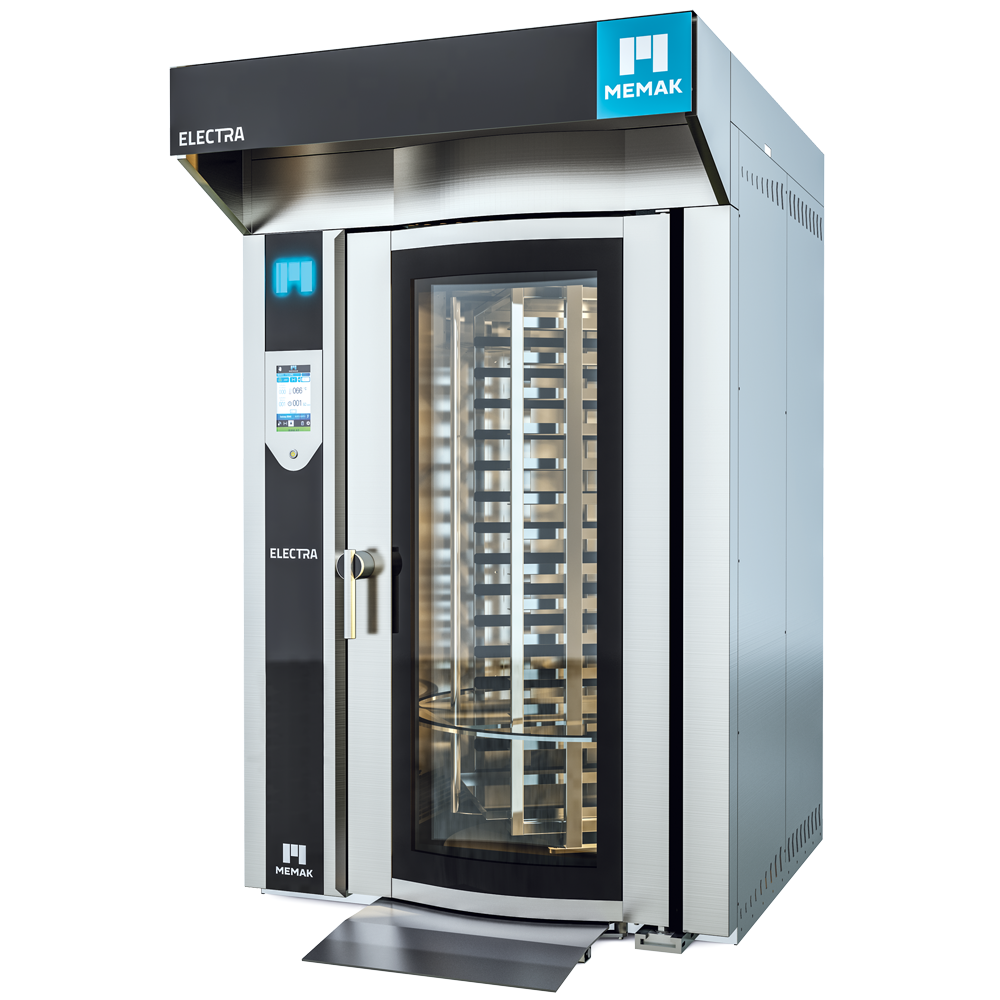

Electra

ROTARY RACK-IN STORE OVEN

Standard Features

• Compatible with Industry 4.0
• Stylish and ergonomic design
• Visual and audible warning
• High energy saving
• Easy Installation

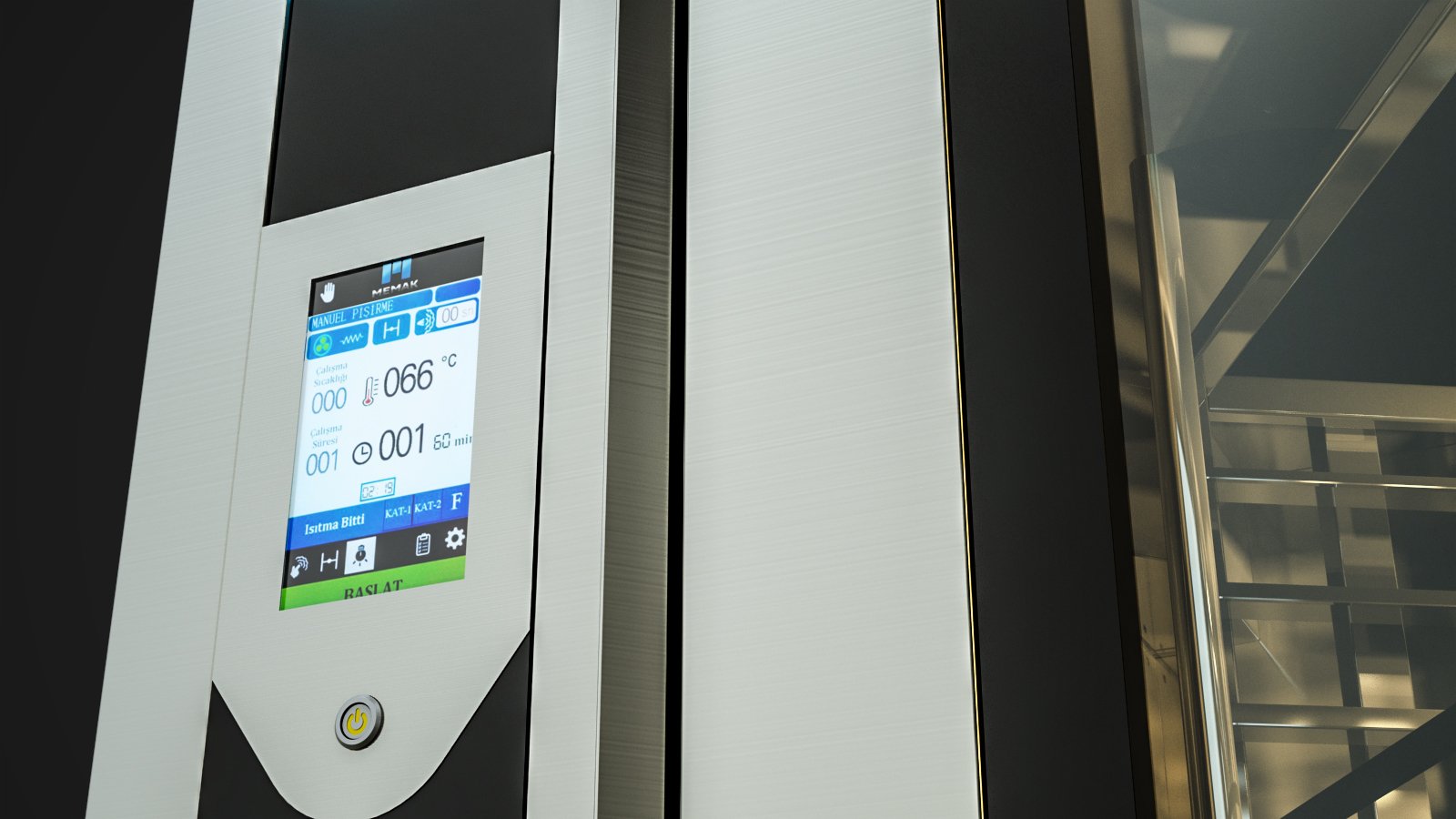

• Standart touch screen panel with pre-programmed baking process
• Internal & External AISI 304 grade stainless steel design
• Large front window with double heat-resistent glass
• High capacity steam system with cast-iron
• Temperature range 50-300 °С
• Automatic steam control control and air damper
• Bidirectional trolley rotation
• Eco mode

Technical Specifications

Baking
Tray Size | cm | 40x60 / 40x80 / 53x65 /50x70
Number
of Trays | Adet | 12 - 15
Tray
Clearanaces | cm | 10 - 8,8
Baking
Area | m2 | 4,1
Door
entrance | cm | 64
Steam
Chimney Outlet | Ø cm | 9
Water
Supply | İnç | 1/2”
Energy
Resource | Electrical
Electric
Connection | 380V / 50-60 hz / 3 phase
Power
Supply | kw | 39
Weight | kg | 650
Exterior
Dimensions | cm | W : 120
H : 207
L : 130
L1 : 152

Documents

• User Guide
• Product Brochure
