Rota E
£0.00
Shipping calculated at checkout.

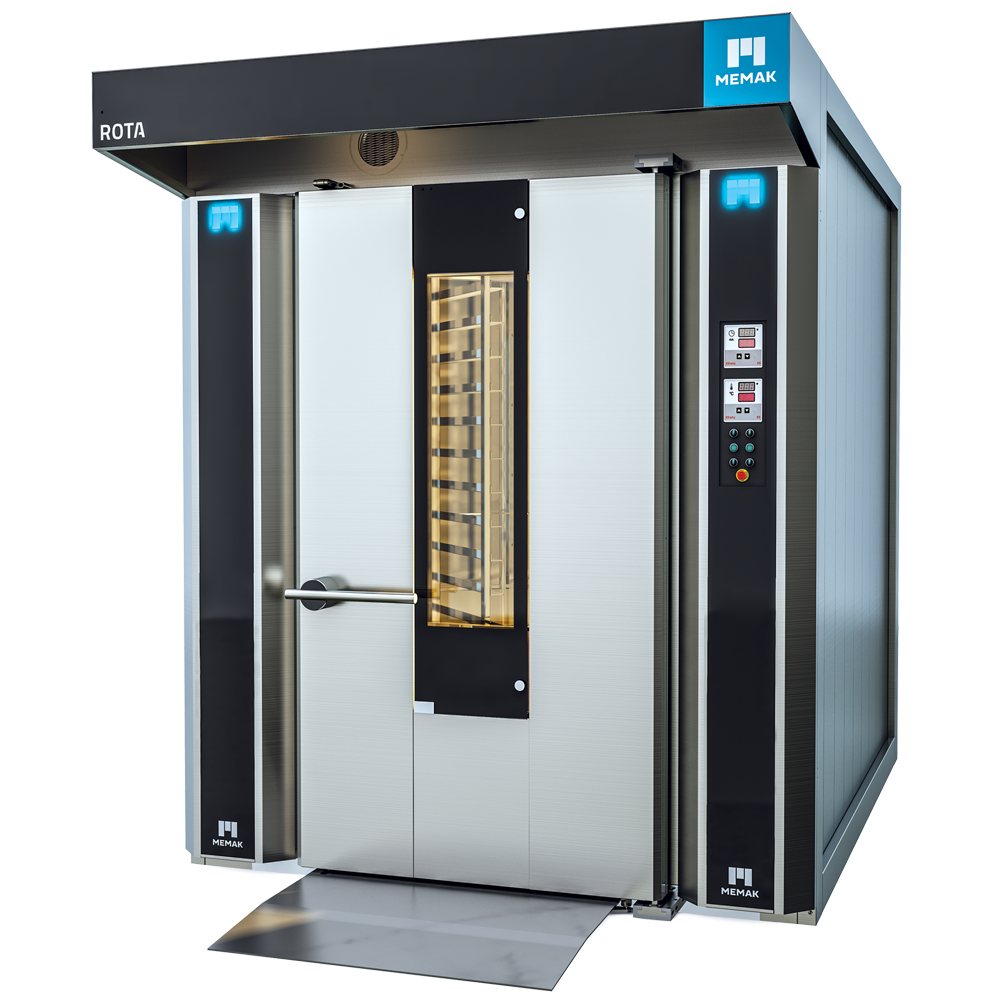

ELECTRICAL ROTARY RACK OVEN
Standard Features
- Compatible with Industry 4.0
- Stylish and ergonomic design
- Visual and audible warning
- High energy saving
- Homogeneous and highly efficient heat distribution
- Rotating platform - swing system
- Incoloy resistance
- Internal & External AISI 304 grade stainless steel design
- High efficiency powerfull steam generators
- Temperature range between 50-350 °С
- Automatic steam control
Accesories
- Rack trolley and tray
- Air damper

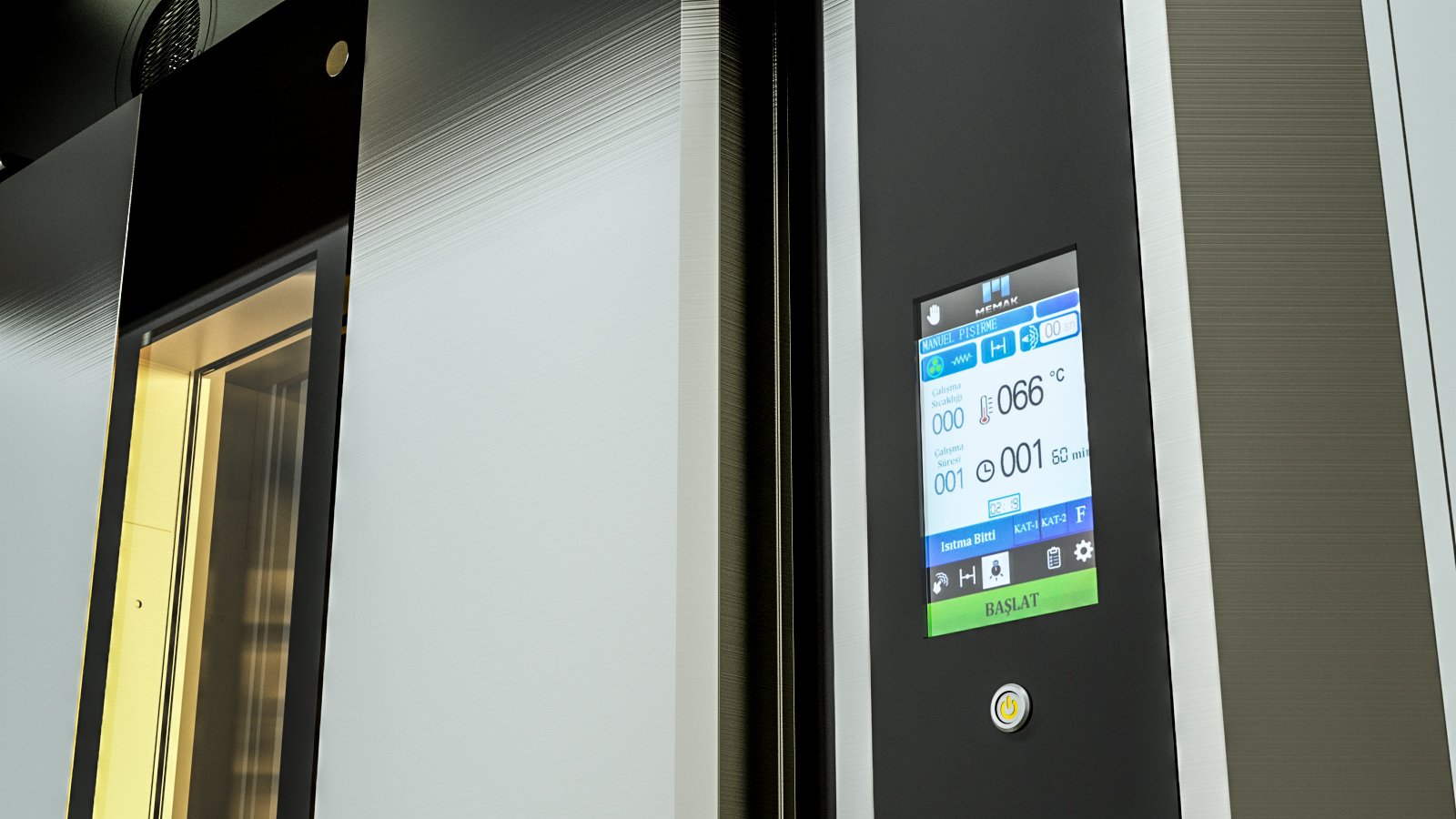

- PLC touch screen control panel
Technical Specifications
ROTA 810 E | ROTA 609 E | ROTA 608 E Baking Capacity | Pcs | 3.360 | 2.016 | 1.584 Baking Tray Size | cm | 80x100 / 75x104 | 60x90 / 60x80 | 60x90 / 60x80 Number of Trays | Pcs | 14 - 16 - 18 | 14 - 16 - 18 | 11 - 13 - 15 Tray Clearanaces | cm | 11,4 - 10 - 8,9 | 11,4 - 10 - 8,9 | 12,5 - 10,5 - 9 Baking Area | m2 | 11,2 - 12,8 - 14,4 | 7,56 - 8,64 - 9,72 | 5,94 - 7,02 - 8,01 Door Entrance | cm | 100 | 80 | 80 Steam Chimney Outlet | Ø cm | 13 | 13 | 13 Water Supply | Inch | 1/2” | 1/2” | 1/2” Energy Resource | Electrical | Electrical | Electrical Electric Connection | 380V / 50-60 hz / 3 phase | 380V / 50-60 hz / 3 phase | 380V / 50-60 hz / 3 phase Power Supply | kw | 70 | 57 | 48 Weight | kg | 2.100 | 1.860 | 1.500 Exterior Dimensions | cm | W : 181 H : 232+25 L : 215 L1 : 260 L2: 290 | W : 160 H : 232+25 L : 197 L1 : 245 L2: 275 | W : 160 H : 207+25 L : 197 L1 : 245 L2: 275
